New preprint: the ultrastructure of the axonal actin rings revealed!

An exciting project from the lab is now out on bioRxiv. This is a collaboration with electron microscopy guru Stéphane Vassilopoulos from the Myologie Institute in Paris. One of the most striking discovery of super-resolution microscopy so far has been the periodic actin/spectrin scaffold along axons, with actin rings spaced every 190 nm by spectrin tetramers. Since its discovery in 2013, a number of labs, including ours, have used various super-resolution microscopy techniques (SMLM, SIM, STED) to refine our knowledge about this structure. However, actin rings and the axonal periodic scaffold had not been observed by EM until now.

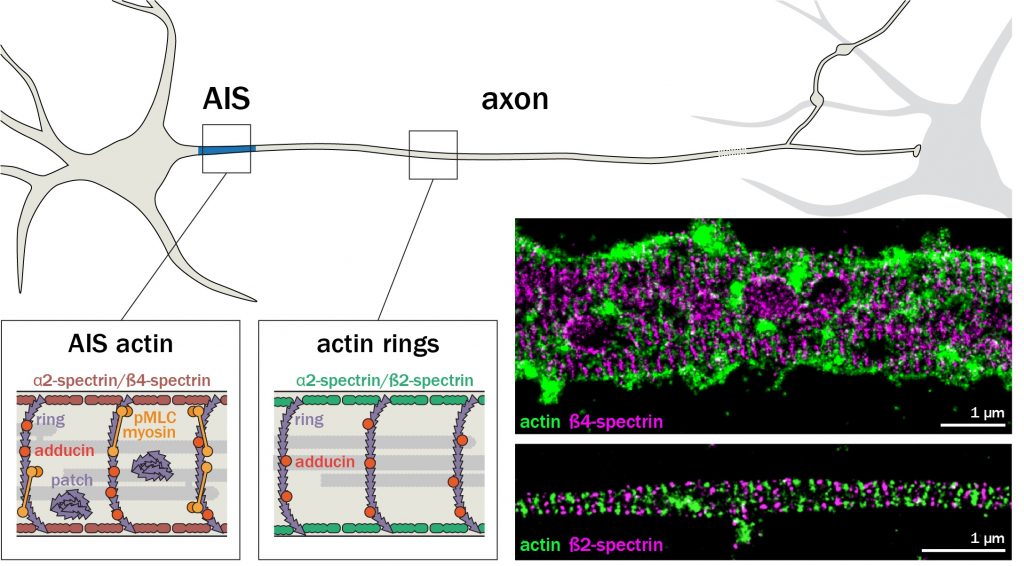

Actin rings and the axonal periodic scaffold (adapted from Papandréou & Leterrier, 2018)

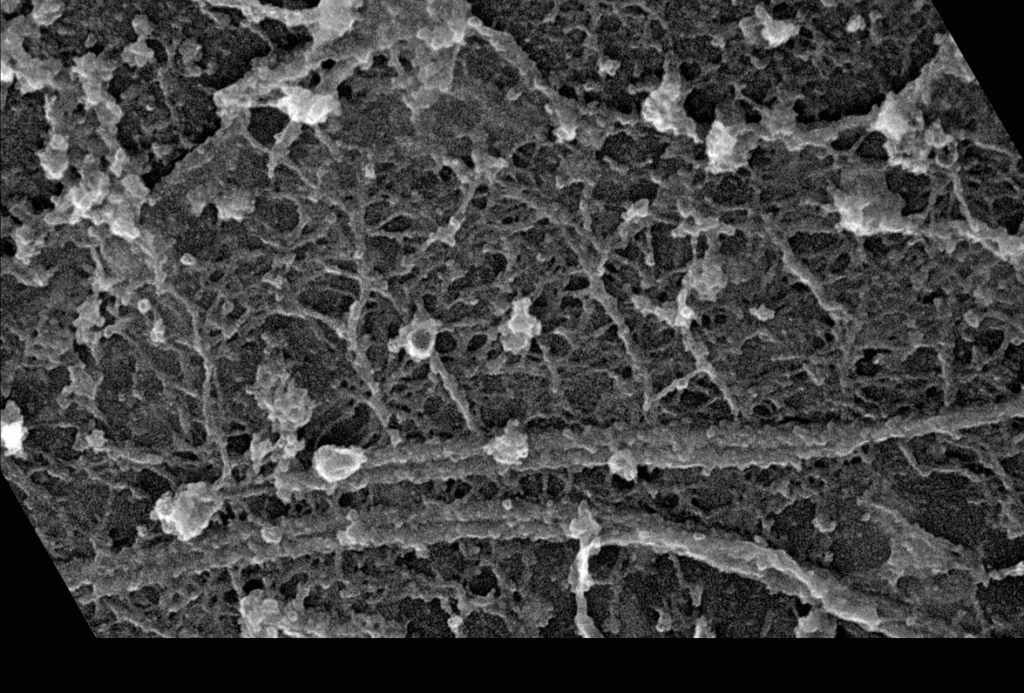

Using mechanical unroofing and platinum-replica electron microscopy (PREM), we were able to visualize the axonal actin rings regularly spaced under the exposed plasma membrane of axons, and to determine their ultrastructure and molecular organization. And we had a big surprise: the actin rings are not made of short, capped actin filaments as it was assumed since their discovery, by analogy with actin inside the erythrocyte submembrane cytoskeleton. Instead, they are braids made of two long (~0.5 to 1 µm) actin filaments!

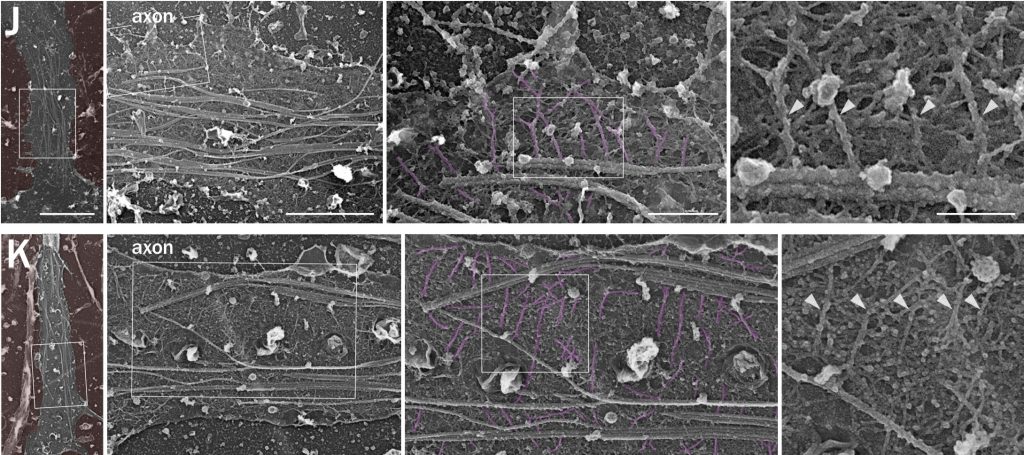

The regularly-spaced actin “braids” (magenta) as seen along axons by platinum-replica electron microscopy

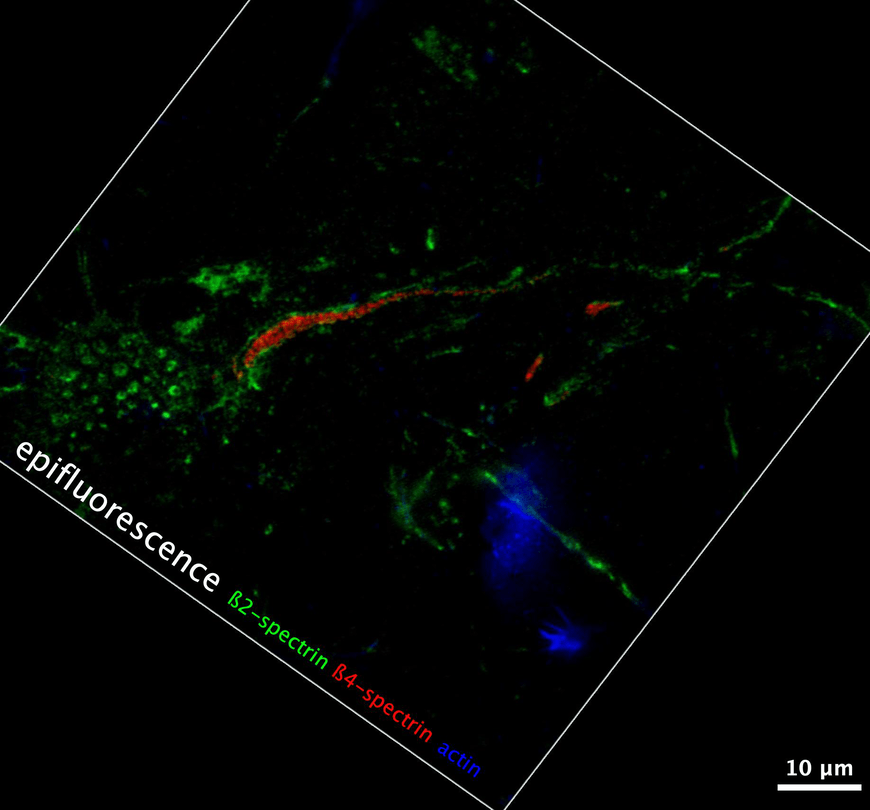

The actin braids in 3D

These actin braids are connected by a dense mesh of spectrins, which we unambiguously identified using immunogold labeling and PREM. Moreover, we probed the stability of the axonal periodic scaffold using actin-targeting drugs, and found similar results by super-resolution and electron microscopy. Finally, we directly demonstrated the identity and organization of the scaffold components (actin, spectrins) by performing correlative SMLM/PREM, visualizing the same sample by super-resolution and electron microscopy.

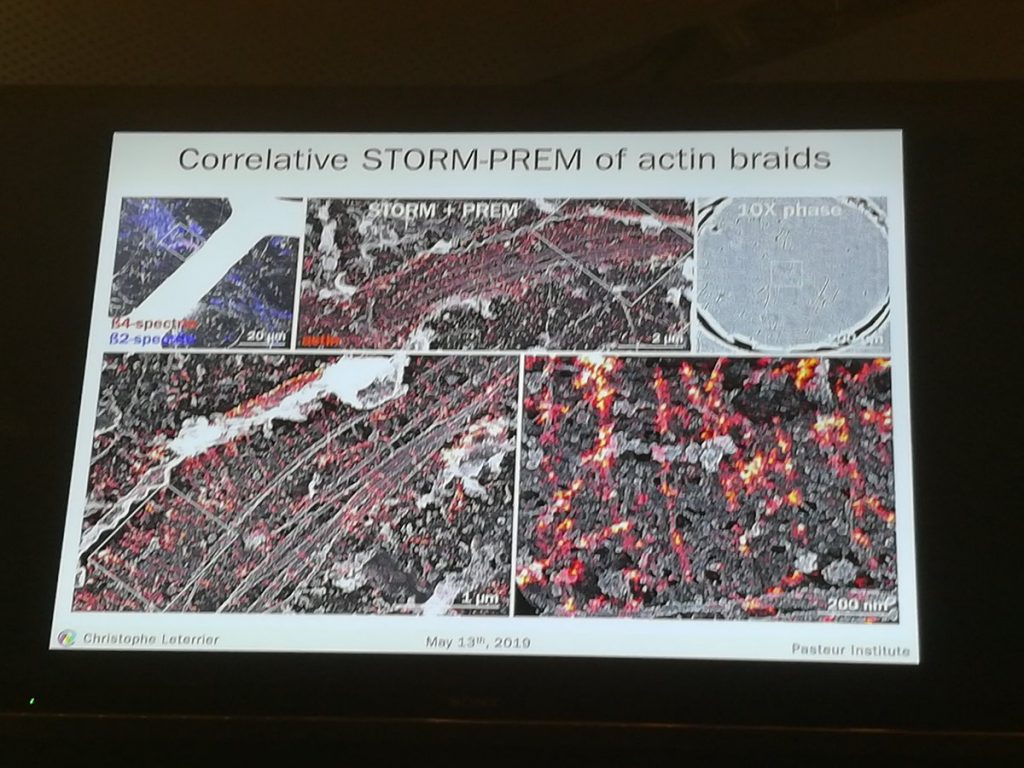

Correlative SMLM and PREM to visualize actin rings

It was a great pleasure to work with Stéphane! The project benefited from the magic unroofing touch of our Master 2 student Solène, and from important ground work by Angélique and Ghislaine from the team. To read more, please see our bioRxiv preprint and let us know what you think!

Fluorescence Microscopy Workshop at Institut Pasteur

Christophe spoke at the Fluorescence Microscopy Workshop IV on cutting-edge technologies at Institut Pasteur on May 13. A nice day devoted to super-resolution microscopy with academic speakers mixed with technological presentation from companies. The workshop continued for the whole week with the possibility to test various microscopes, such as the new N-SIM S fast structured illumination microscopy from Nikon.

The actin braids! (see our preprint, photo @Nicolas26538817)

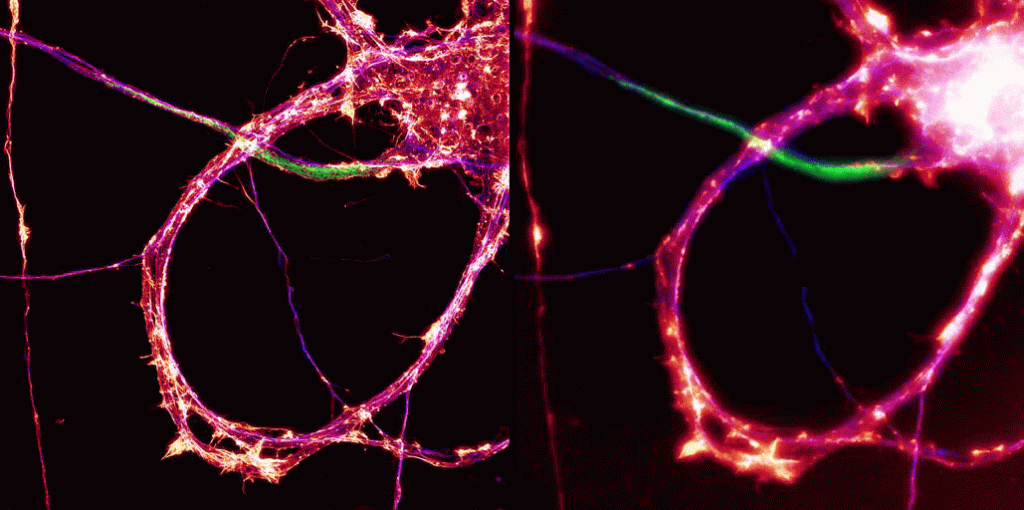

Actin and spectrin bands along an axon seen by SIM (left) but not by diffraction-limited fluorescence (right) – Images from the Nikon N-SIM S

Article out: tips and tricks for Single Molecule Localization Microscopy

Our Methods article about our tips and tricks for optimized Single Molecule Localization Microscopy (SMLM, previously announced here when we preprinted it) has just been published in its final form. This is part of a special issue on super-resolution microscopy, thanks to Jan Tønnesen for the invitation to contribute. If you want to optimize sample preparation and imaging for STORM and DNA-PAINT of classic celular targets (microtubules, actin, clathrin-coated pits), check it out!

STORM imaging of clathrin-coated pits (top) and actin (bottom)

“Emerging Concepts in the Neuronal Cytoskeleton” meeting in Chile

Christophe participated to the Emerging Concepts in the Neuronal Cytoskeleton meeting in Villarica, Chile. He was the first speaker of the meeting in the “Super-resolution microscopy of the neuronal cytoskeleton, straight after three flights and 30 hours of travel! He presented new results on the visualization of axonal actin rings using super-resolution and electron microscopy (see the preprint here). The meeting was excellent with a stunning location by the lake, lots of amazing talks and interesting discussions. Read more on Twitter.

Christophe’s talk (photo @disadwig)
The beautiful view on the lake (photo @DoPaMine2go)
Tony Brown in deep concentration (photo @christlet)
A walk at the bottom of the volcano with @Roy_Lab_Thinks

Check also the beautiful photographs of the participants taken by Rodolfo Carvajal (full slideshow here):

We will co-organize the next edition in 2021 with Stephanie Gupton (UNC, North Carolina, USA) and Carlos Wilson (IMMF, Cordoba, Argentina), so stay tuned!

The NeuroCyto 2019 participants

Pumpy is out! Perform advanced microscopy experiments thanks to NanoJ-Fluidics

The LEGO Pumpy (or more officially NanoJ-Fluidics) paper is out ! A joint venture with the Henriques lab, this details how to build a fully open-source multi-channel syringe pumps with LEGO and Arduino. We provide examples on how to use it directly on the microscope for complex imaging protocols: live-to-fixed correlative acquisitions, image-analysis triggered fixation, sequential imaging… Check the video we put together showing the possibilities:

In the lab, we used Pumpy to perform complex STORM/PAINT multiplexed acquisitions. Here it’s a 5-color imaging of actin, mitochondria, intermediate filaments, microtubules and clathrin. It’s made with 1 single-color STORM and two 2-color PAINT sequential acquisitions:

Imaging was a breeze thanks to Pumpy, so the main challenge was to optimize the fixation and immunolabeling for 5 distinct targets. Great work from Ghislaine Caillol and Fanny Boroni-Rueda! Check the full article here for more.

New preprint: tips and tricks for SMLM

We have a new preprint out! Want to do good super-resolution images? We have put together all our SMLM tips and tricks. This is a methods paper that describes our SMLM workflow, using benchmark samples such as microtubules and clathrin-coated pits.

Our SMLM workflow
Optimized labeling for cellular structures

A good image starts with a good sample… that’s why the first part is about how to our fixation and immunolabeling procedures. Then it’s “just” a matter of imaging and processing. Tips for acquiring 3D-STORM images, as well as multi-color DNA-PAINT. Congrats to Angélique and Karoline for their beautiful images. Check our preprint to know everything, and let us know what you think!

3D-STORM images of microtubules, clathrin and actin
Multicolor STORM/DNA-PAINT imaging of microtubules, clathrin and actin

Just out: overview of the NanoJ framework for open-source super-resolution

The Henriques lab and its collaborators have a new paper out in the Journal of Physics D: Applied Physics. This is an overview of the NanoJ framework they are developing for open-source super-resolution in ImageJ/Fiji. In includes SRRF, SQUIRREL, NanoJ-Fluidics aka Pumpy, but also utilities for drift correction, chromatic aberration registration and single-article averaging. Have a look at the accepted manuscript here!

Welcome to Karoline

Today we welcomed a new team member, Karoline Friedl. She will be in the lab thanks to a collaboration with French startup Abbelight, and will help develop and test new super-resolution modalities for our projects. Welcome Karoline!
